Home ProductsVE Head Rotor

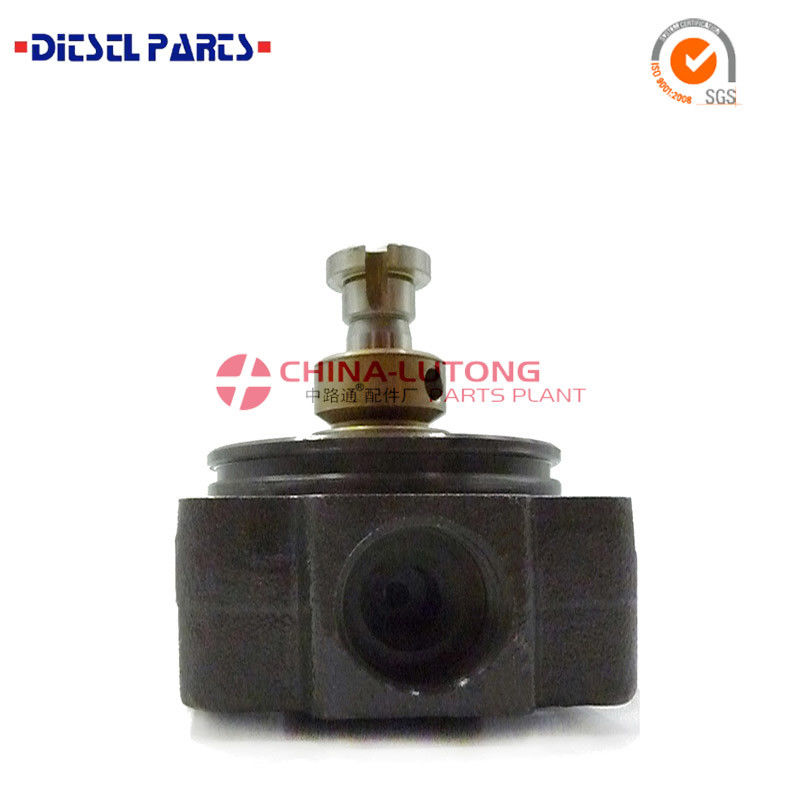

rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head

rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head

    • rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head
    • rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head
    • rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head
    • rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head
  • rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head

    Product Details:

    Place of Origin: CHINA
    Brand Name: DICSCL PARCS
    Certification: ISO 9001:2008
    Model Number: 1 468 334 024

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: 20.5-21.5 US Dollar
    Packaging Details: inner gift box+ourter carton,ourter carton size 42cm*32cm*22cm
    Delivery Time: 3-5 days
    Payment Terms: Western Union, MoneyGram, L/C, T/T
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Size: 79mm*76mm*95mm Net Weight: 1.5KG
    Material: Mould Steel Hardness: HRC62-65
    Type: VE Pump Head Rotor Function: Injection Pump Parts
    Strock: 4 Cylinder Warranty: 180 Days
    Color: Silver

    rotor heads Oem 1 468 334 024 4cylinders Ve Diesel injection pum head



    HF high quality ve pump distributor head from china-lutong parts plant



    Fuel:Diesel Fuel

    Stroke: 4 Stroke
    Raw material: Cr12MOV
    Processing Technique: Vacuumhardening
    Rigidity: HRC62-65
    Guarantee time: 180 days

    Hs Code:8409 9999.90





    Contact Person: Corissa Lao

    Email: Corissa@china-lutong.net





    China-Lutong Parts Plant is manufacter in China in the suppyling and servicing of diesel fuel injection enterprise,our quality is Approved by ISO9001:2008


    We are Major in: Diesel Fuel Injection Nozzle, head rotor, ve distributor head,rotor head,Ve pum parts,We have the world brand equipment, craft, full testing machine, very strong technical force, and we have big lots, more types and high quality production scale, and modernization manager.



    What is VE pump?

    The purpose of the fuel injection pump is to deliver an exact metered amount of fuel, under high pressure, at the right time to the injector. The injector, unlike in a gasoline engine, injects the fuel directly into the cylinder or a prechamber connected to the cylinder.
    The VE in the name of the Bosch pump used in the VW diesels and many other small diesel engines stands for "Verteiler", which is German for distributor or divider. The other common kind of injection pump is the inline pump. The difference between them is that the "Verteiler" VE pump has one fuel metering plunger, and a mechanism (the "Verteiler"/distributor) to send the fuel to the right cylider. The inline pump has one plunger for each cylinder.

    rotor heads






    Our Main Products:
    1.Head Rotor:VE head Rotor(Bosch,Denso,Zexel,Delphi)
    2.Fuel Injection Pump:(ISUZU,JMC)
    3.Ve Pump Parts:(Feed Pump ,Cam Plate, Drive Shaft,Solenoid Valve,Roller Ring,Oil Seal,etc.)
    4.Reparit Kit(VE Pump,Lucas,etc.)
    5.Plunger:(Type:A,AD,P,PS7100,P8500,MW,PW,PT,etc.)
    6.Nozzle:(Type:DN_SD,DNOPDN,S,SN,P,PN.etc.)
    7.Delivery Valve(A,P type etc.)
    8.Pencil Nozzle(Ford,John Deer,CAT.)
    9.Common Rail Control Valve(621C,622B,625C,C7/C9,etc.)
    10.Lucas Head Rotor.(DPA,DPS,DP200)
    11.Diesel Fuel Injectors(Bosch,Denso,Delphi)
    12.Nozzle Tester,Test Bench.
    13.Other Components



    rotor heads Oem 1 468 334 024



    NO. VE head NO. Data Engine Model
    1 096400-0143 4/9R ISUZU 4FE1
    2 096400-0232 4/10R MITSUBISHI 4D5T
    3 096400-0242 4/9R TOYOTA 2C
    4 096400-0262 4/12R KOMATSU 4D95L
    5 096400-0371 4/10R TOYOTA 2L
    6 096400-0432 4/12R TOYOTA 1Z
    7 096400-1030 4/9R MITSUBISHI 4D6
    8 096400-1060 4/9R TOYOTA 3B
    9 096400-1090 4/9R TOYOTA 1DZ
    10 096400-1210 6/12R TOYOTA 11Z
    11 096400-1220 4/12R KOMATSU 4D95S
    12 096400-1230 4/12R TOYOTA 1Z
    13 096400-1240 4/12R TOYOTA 14B
    14 096400-1250 4/10R TOYOTA 3L
    15 096400-1300 4/10R TOYOTA 1DZ
    16 096400-1320 6/12R TOYOTA 1HD-T
    17 096400-1330 6/10R TOYOTA 1HZ
    18 096400-1500 6/10R TOYOTA 1HZ
    19 096400-1600 4/11L ISUZU 4JB1
    20 096400-1610 4/10L
    21 096400-1670 6/12R TOYOTA 3B
    22 096400-1680 3/9R TOYOTA
    23 096400-1700 6/12R
    24 096400-1441 4/12R Toyota 1KZ-TE
    25 096400-1480 4/10R Toyota 2L-TE/3CT-E
    26 096400-1730 4/10R
    27 096400-1740 4/10R
    28 096400-1770 4/10R
    29 096400-1800 6/12R
    30 096400-1950 4/11R NISSAN
    31 146400-2220 4/10R MITSUBISHI 4D55
    32 146400-4520 4/10R ISUZU 4FC1
    33 146400-5521 4/9L ISUZU C223
    34 146400-8821 4/9L ISUZU
    35 146400-9720 4/10R NISSAN LD20T
    36 146401-0221 4/10R MITSUBISHI 4D65
    37 146401-0520 4/10R NISSAN AD23
    38 146401-1920 4/9L ISUZU C240
    39 146401-2120 4/10R NISSAN AD27
    40 146401-3020 4/12R KOMATSU
    41 146401-3220 4/10R MITSUBISHI 4D56
    42 146401-3520 4/10L TD23
    43 146401-4220 4/11R NISSAN QD32
    44 146401-4420 4/12R DAEWOO
    45 146402-0820 4/11R ISUZU 4JB1 4BC2
    46 146402-0920 4/11L ISUZU 4JA1 4JB1
    47 146402-1420 4/12R ISUZU 4BE1
    48 146402-1520 4/10R ISUZU D201-02
    49 146402-2420 4/11L ISUZU 4JB1CG
    50 146402-2520 4/11R
    51 146402-3420 4/11R NISSAN BD30
    52 146402-3820 4/11L ISUZU 4JA1 4JB1
    53 146402-4020 4/12L ISUZU 4JB1
    54 146402-4420 4/12L ISUZU 4JA1
    55 146402-4720 4/11L ISUZU 4JB1-TC
    56 146402-5120 4/11L Ford
    57 146402-5220 4/11L
    58 146403-2820 4/10R MAZDA ED33
    59 146403-3120 4/10L NISSAN CD17
    60 146403-3320 4/10R NISSAN ED35
    61 146403-3520 4/10R NISSAN TD27
    62 146403-4820 4/11L ISUZU 4JG2
    63 146403-4920 4/11R MITSUBISHI 4M40
    64 146403-6820 4/10L MAZDA WLT
    65 146403-8720 4/10L HYUNDAI
    66 146404-1620 4/10R JAC
    67 146404-2200 4/12L ISUZU
    68 146405-0421 6/11R DAEWOO (ASIAKIA)
    69 146405-1920 6/10R NISSAN TD42
    70 146405-4020 6/10R
    71 146405-4220 6/11R
    72 146405-4420 6/11R
    73 146406-0620 6/11R KOMATSU 6D95L
    74 146408-0620 6/10R
    75 923402-0904 4/10R
    76 1468 333 323 3/10L FIAT GEOTECH
    77 1468 334 009 4/11L ISUZU
    78 1468 334 012 4/12R
    79 1468 334 013 4/12R
    80 1468 334 313 4/9R IVECO 40-8
    81 1468 334 327 4/9R Volkswagen CR, JK
    82 1468 334 337 4/10R Ford York
    83 1468 334 378 4/12R Cummins 4BT
    84 1468 334 472 4/11L
    85 1468 334 475 4/12R Perkins Phaser 70
    86 1468 334 480 4/10R LANCIA
    87 1468 334 485 4/11R IVECO 40-10
    88 1468 334 496 4/12R Cummins 4BT AA
    89 1468 334 564 4/8R VW/AUDI 1Y
    90 1468 334 565 4/9R VW/AUDI JK
    91 1468 334 575 4/9R VW ME
    92 1468 334 592 4/11L AURIFULL
    93 1468 334 595 4/11R IVECO
    94 1468 334 603 4/11R IVECO 40-1
    95 1468 334 604 4/11R IVECO
    96 1468 334 606 4/11R IVECO/RENAULT
    97 1468 334 625 4/12R MAXION
    98 1468 334 647 4/12R AGRALE DEUTZ
    99 1468 334 648 4/12R Cummins/CDC 4BTAA
    100 1468 334 653 4/12R KHD
    101 1468 334 654 4/12R MWM
    102 1468 334 672 4/12R Perkins Phaser 70
    103 1468 334 713 4/12R MAN
    104 1468 334 720 4/11R IVECO
    105 1468 334 780 4/11R IVECO
    106 1468 334 798 4/11R IVECO 40-10
    107 1468 334 799 4/11R
    108 1468 334 810 4/12R
    109 1468 334 841 4/11R IVECO
    110 1468 334 844 4/11R
    111 1468 334 870 4/12R CITROEN
    112 1468 334 874 4/12R IVECO
    113 1468 334 889 4/11R RENAULT S9W 700
    114 1468 334 900 4/12R CASE IH
    115 1468 334 925 4/12R IVECO
    116 1468 334 928 4/11L
    117 1468 334 946 4/11R IVECO
    118 1468 334 964 4/8R Volkswagen
    119 1468 334 982 4/12R
    120 1468 335 044 5/11L
    121 2468 335 047 5/11R
    122 1468 335 345 5/10R AUDI CN
    123 1468 336 352 6/12L Perkins Phaser 70
    124 1468 336 364 6/12R MAN D0226 MKF/170
    125 1468 336 403 6/12R Cummins
    126 1468 336 423 6/12R Cummins 6BT
    127 1468 336 451 6/12R Perkins Phaser 70
    128 1468 336 457 6/11R IVECO
    129 1468 336 464 6/12R Perkins Phaser 160t
    130 1468 336 480 6/12R Cummins 6BT 5.9
    131 1468 336 499 6/12R
    132 1468 336 513 6/12R
    133 1468 336 606 6/12R Cummins 6B TAA 5.9
    134 1468 336 607 6/12R
    135 1468 336 614 6/12R
    136 1468 336 626 6/12L Perkins
    137 1468 336 636 6/12R DAF CN 95
    138 1468 336 637 6/11R IVECO
    139 1468 336 642 6/12R
    140 1468 336 647 6/12R CDC6BTA5.9
    141 1468 336 655 6/12R
    142 1468 336 806 6/12R
    143 1468 374 016 4/12R
    144 1468 374 019 4/12R
    145 1468 374 024 4/12R Cummins
    146 1468 374 041 4/12R IVECO
    147 1468 374 047 4/11L JMC
    148 1468 374 053 4/12R Perkins
    149 1468 376 001 6/12R NEW HOLLAND TM140
    150 1468 376 002 6/12R Cummins
    151 1468 376 003 6/12R
    152 1468 376 005 6/12R Cummins
    153 1468 376 037 6/12R
    154 1468 376 668 6/12R Perkins
    155 2468 334 091 4/10R Volkswagen AFN
    156 2468 336 013 6/10R BME 25 6T1
    157 2468 336 029 6/10R
    158 9461 080 408 4/11R AGRALE DEUTZ
    159 146400-2700 4/10L KIA
